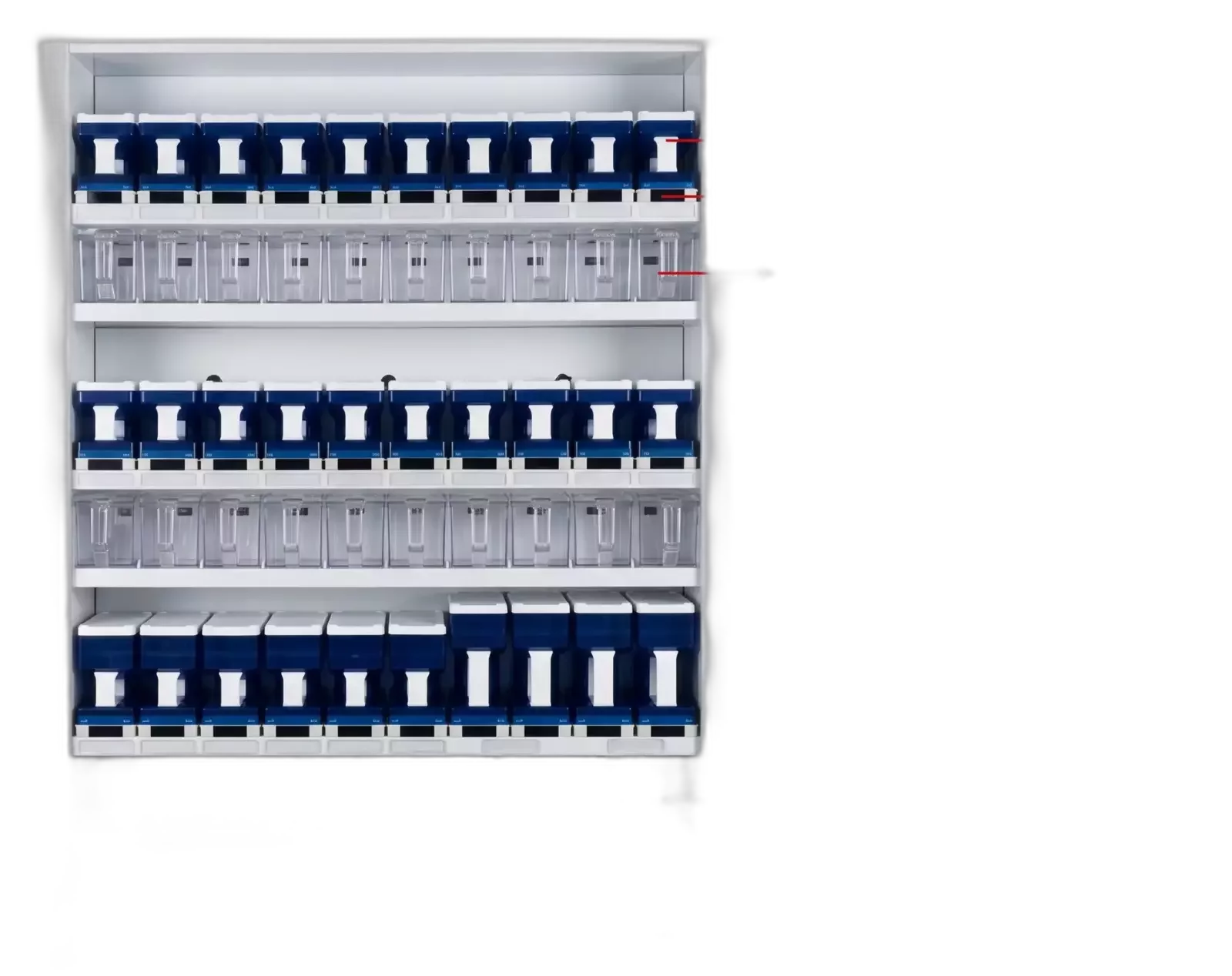

MTC30 Vial Packaging
MTC30 Vial Packaging
Multi Tablet Counter
How It Works
Built for Performance
290 Pills Per Minute
High-speed dispensing at up to 290 pills per minute across multiple prescriptions simultaneously.
Multi-Counter Packing
Simultaneously packs multiple orders at the same time, dramatically boosting pharmacy throughput.
Fast 30-Second Dispensing
Complete order dispensing within 30 seconds per prescription, maximizing efficiency.
Modular Expansion
Expandable from 30 to max 90 cassettes with 2 additional extender units — no software changes needed.
Infrared Photo-Detection
High-accuracy infrared detection ensures every tablet is counted correctly before dispensing.
PMS / HIS / OCS Integration
Seamlessly receives prescriptions from Order Communication, Hospital Information, or Pharmacy Management Systems.
Compact Table-Top
Space-efficient cabinet-style design fits on a standard pharmacy countertop without a large footprint.
Barcode Verification
Barcode scanning at the final step confirms order accuracy and allows label attachment with full traceability.
Product Information
Product Information
SPEC | VALUE |
|---|---|
| Product Name | CRETEM MTC-30 (Multi Tablet Counter) |
| Cassette Qty | 30 Cassettes (extendable to max 90) |
| Speed | Max 290 pills / minute |
| Dispensing Time | Fast dispensing within 30 seconds |
| Detection | Infrared Photo-detection |
| Storage | Cabinet type with cassettes |
| Packing Method | Direct drop into cup or user's bottle |
Dimensions | 808mm × 180mm × 1,220mm (31.8" × 7.1" × 48") per unit |
| Weight | 60 kg (132 lb) |
| Power Consumption | 100W (Max 500W) |
| Power Supply | 220V/60Hz (Korea) | 120V/60Hz (USA) | 230-240V/50Hz (Europe) |
| Controller | Microsoft Surface Go or Touch Panel (Windows 10) — Optional |
| Communication | RS422 |
FAQ
FAQ
1. How many cassettes does the MTC-30 support?
The MTC-30 comes standard with 30 cassettes and can be extended to a maximum of 90 cassettes using 2 additional extender units — all controlled by a single software instance.
2. How fast does the MTC-30 dispense?
The MTC-30 achieves a maximum dispensing speed of 290 pills per minute, with each full order completed within 30 seconds.
3. What pharmacy systems does the MTC-30 integrate with?
The MTC-30 integrates with OCS (Order Communication System), HIS (Hospital Information System), and PMS (Pharmacy Management System) via RS422 communication.
4. What control interface does it use?
The MTC-30 is operated via an optional Microsoft Surface Go 2 LTE (or higher) touch panel running Windows 10 Professional, connected via USB to RS232C.
5. What is the recommended barcode scanner?
The recommended barcode scanner is the ZEBRA SYMBOL-DS2208, supporting 1D/2D and PDF417 scan types, compatible with PS/2, USB, and RS232C interfaces.
6.What label printer is recommended?
The recommended label printer is the ZEBRA GK420E with 203 dpi resolution, supporting USB, RS-232C, and Ethernet connectivity, with a max print speed of 152mm/sec.
7. What are the power requirements?
The MTC-30 operates at 100W (max 500W) and supports 220V/60Hz (Korea), 120V/60Hz (USA), and 230-240V/50Hz (Europe) power supplies.
